Silent Check Valve

Silent Check Valve

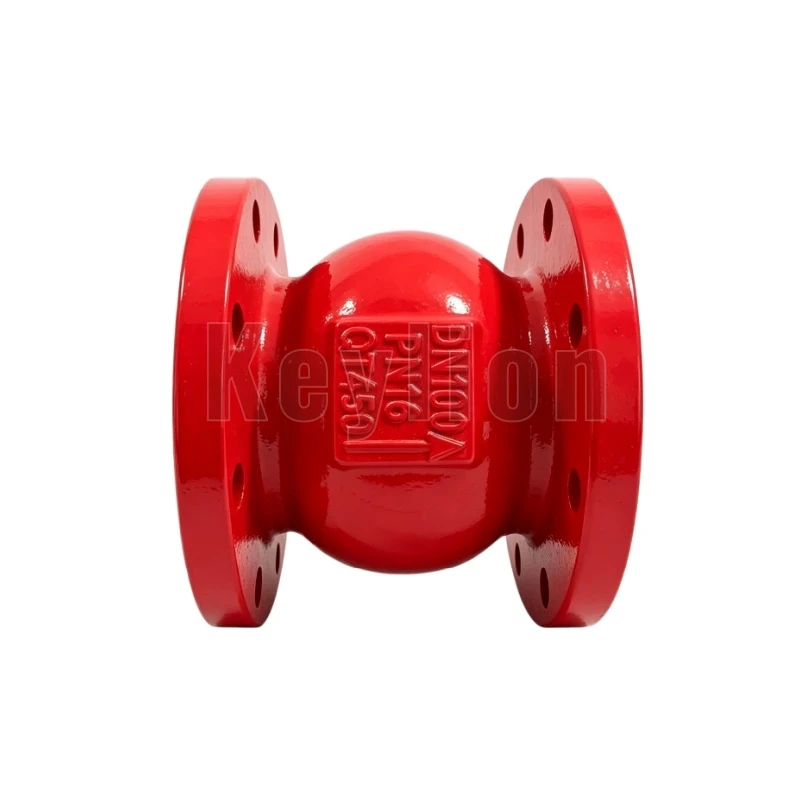

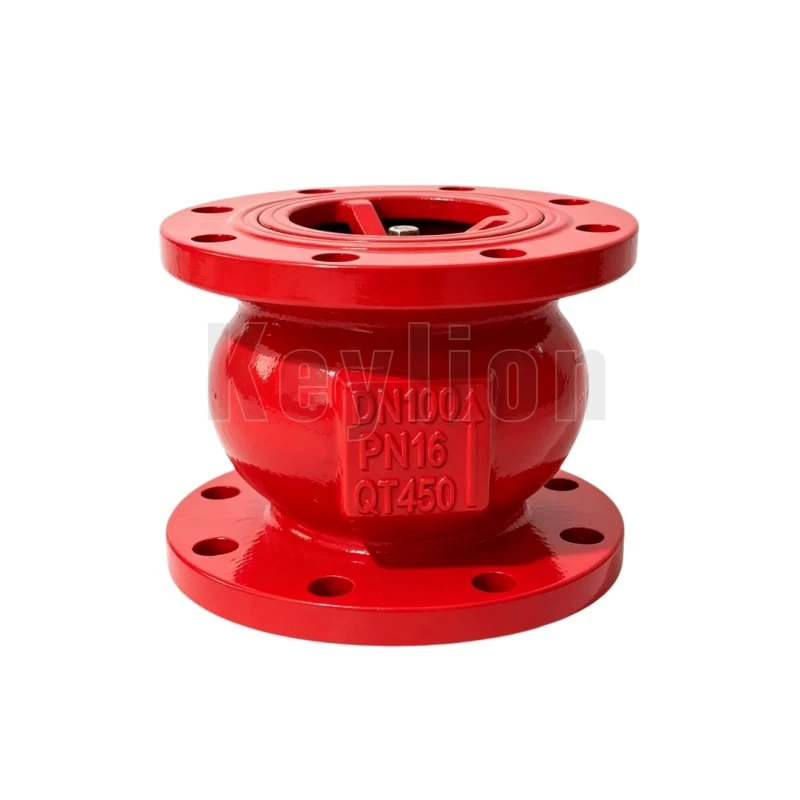

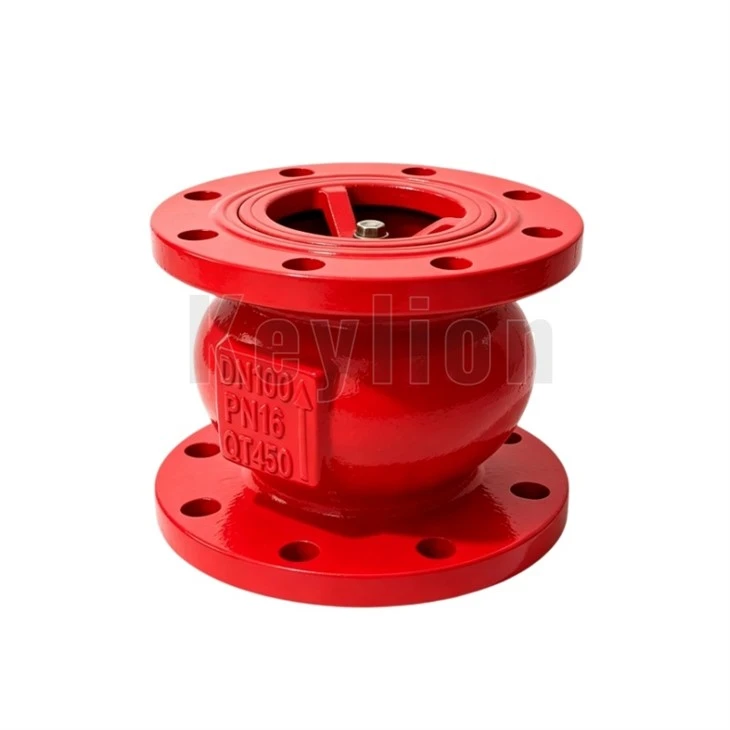

Keylion® Silent Check Valve, often referred to as a non-slam or spring-assisted check valve, is a vital safeguard against backflow and destructive water hammer. It functions by using an internal spring to force the disc closed the moment pump pressure drops, sealing the pipeline before flow reversal occurs. This fast-acting mechanism is widely applied in high-rise booster stations and industrial HVAC systems to eliminate noise and vibration. You will commonly find it installed on pump discharge lines, typically connected between isolation gate valves and rubber expansion joints to maintain system stability across diverse pipe diameters.

Q1: Why does my piping system still vibrate even with a check valve installed? The problem is usually "closing lag." Standard swing valves wait for the backflow to physically push the gate shut, which is often too late to stop the kinetic energy of the water column. By installing a Keylion VALVE unit, you utilize a spring-assisted mechanism that snaps the disc shut the instant the pump decelerates. This proactively stops the flow before it can reverse, effectively eliminating the shockwaves and "banging" sounds that eventually lead to pipe fatigue.

Q2: Is vertical installation really okay for this design? Yes, but you have to watch the flow direction. Because these valves use an internal spring to control the disc, they aren't dependent on gravity like old-school flapper valves. You can mount them vertically as long as the water is moving upward. The real advantage of vertical mounting is that the guide assembly stays perfectly centered, which minimizes internal friction and prevents the disc from "chattering" against the seat during low-flow periods.

Q3: Why should I care about QT450 material if standard cast iron is cheaper? It comes down to the safety margin. Grey cast iron is brittle; if your system hits a sudden pressure surge, a cast iron body is prone to catastrophic cracking. Choosing a Keylion VALVE ensures you are getting QT450-10 ductile iron, which has much higher elongation and impact resistance. It's the difference between a valve that absorbs a pressure spike and one that fails and floods your mechanical room.

Q4: Will the spring increase my pumping costs due to head loss? Every valve adds a bit of resistance, but it's negligible if the valve is sized correctly. The internal geometry is specifically contoured to allow the fluid to move around the disc with minimal turbulence. The spring is calibrated to be light enough to stay out of the way during normal operation, yet strong enough to seat the disc before the water slams back. Most engineers find the tiny increase in head loss is a small price to pay for protecting expensive pumps and flow meters.
