Product Specifications
| Item | Description |

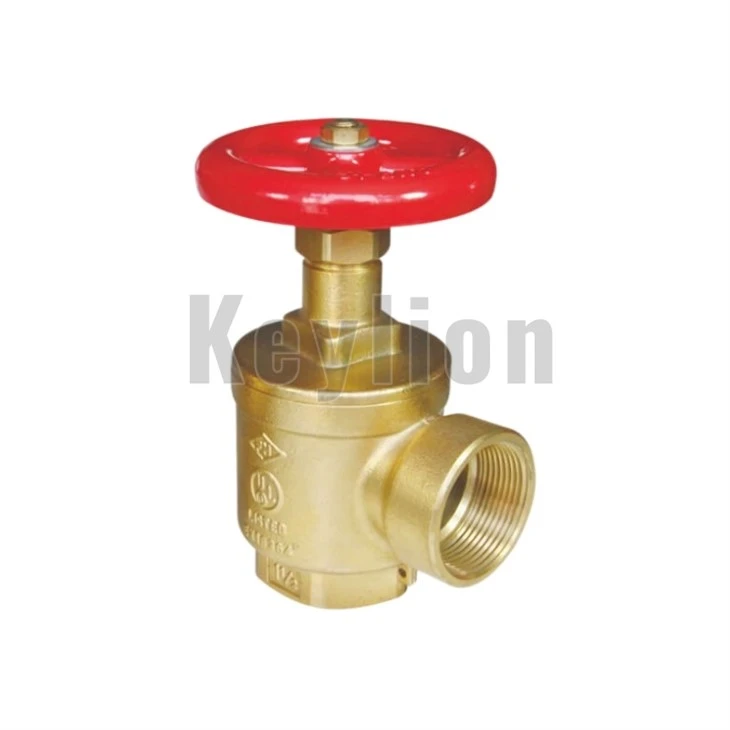

| Product Name | Fire Hose Angle Valve |
| Valve Pattern | 90° Angle Pattern / Rising Stem |
| Size | 1-1/2 Inch (DN40);2-1/2 Inch (DN65) |
| Body Material | Forged Brass |
| Handwheel Material | Ductile Iron,red |
| Inlet Connection | 1-1/2" Female NPT (National Pipe Thread) |
| Outlet Connection | 1-1/2" Female NPT or Male Hose Thread (NST/NH) |
| Max. Working Pressure | 300PSI |
| Applicable Medium | Water (Fire protection standpipe systems) |
| Application | Fire hose rack assemblies or Fire Department outlet connections |
Application
This type of valve is primarily designed for heavy-duty water flow control in fire protection systems.
Fire Hose Rack Assemblies
It serves as a direct water control valve integrated into indoor fire hose rack or reel cabinets. Stationed inside commercial buildings, it allows building occupants or trained personnel to quickly attach or deploy fire hoses to extinguish localized, minor fires before emergency responders arrive.
Standpipe Systems & Fire Department Connections (FDC)
The valve is permanently mounted to the main risers of wet or dry standpipe systems inside high-rise stairwells, corridors, and large parking structures. It acts as a reliable outlet connection point for firefighters, allowing them to hook up their heavy-duty hoses directly to the building's internal water supply network during emergency response.
